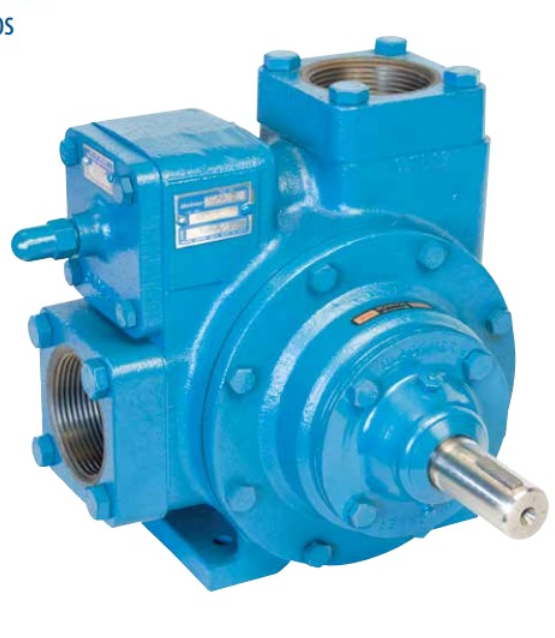

BLACKMER PTO PUMP
TXD SERIES – TRUCK MOUNTED SLIDING VANE PUMP
Specification TXD2A TXD2.5A TXD3E TX4A
Port Size 2“ 2½“ 3“ 4“
Max. Flow 329 LPM 594 LPM 1, 022 LPM 1, 911 LPM
Speed Range 70–780 RPM 70–780 RPM 70–640 RPM 70–520 RPM
Max. Differential Pressure 8.6 bar 8.6 bar 8.6 bar 8.6 bar
Max. Working Pressure 12.1 bar 12.1 bar 12.1 bar 12.1 bar
Pump Type Sliding Vane Sliding Vane Sliding Vane Sliding Vane
Drive PTO / Hydraulic PTO / Hydraulic PTO / Hydraulic PTO / Hydraulic
Typical Application Tanker / Truck Transfer Tanker / Truck Transfer Tanker / Truck Transfer
KEY FEATURES:
Heavy-duty Blackmer sliding-vane technology
Suitable for truck and tanker applications
High-volume liquid transfer
Self-priming capability
Replaceable vanes for easy maintenance
Adjustable internal relief valve
Available with different seal and vane materials
Suitable for petroleum and other compatible liquid-transfer applications
