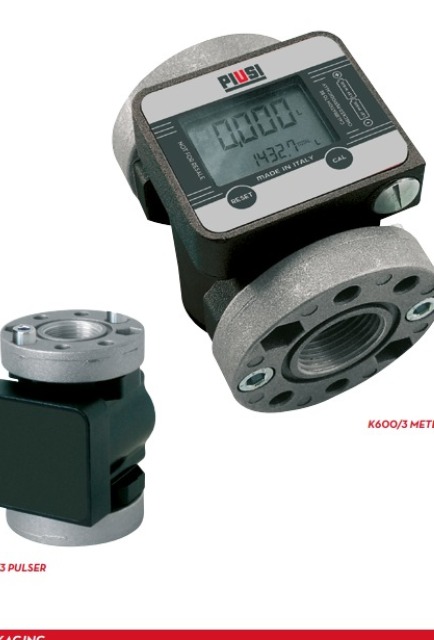

K600 PIUSI METER
PIUSI K600 — key information:
Type: Electronic oval-gear flow meter
Applications: Diesel/HVO/XTL fuel or oil/antifreeze, depending on model
K600/3 diesel: up to 100 L/min, with stated accuracy of ±0.5% and repeatability of 0.2%.
K600/4: available with 1½“ BSP connections; the current K600/4 diesel version is designed for industrial fuel applications.
Display version: Shows dispensed quantity and can be calibrated.
Pulser version: Provides a pulse output for connection to a fuel-management/control system.
Calibration: The K600 can be field-calibrated using its K-factor.
PIUSI K600/3 — Specifications:
For the K600/3 diesel version, the main specifications are:
Specification K600/3 Diesel
Meter type Electronic oval-gear flow meter
Fluid Diesel / HVO / XTL
Flow range 10–100 L/min
Maximum flow 100 L/min (26.4 GPM)
Accuracy ±0.5%
Repeatability 0.2%
Pressure drop < 0.5 bar at maximum flow
Operating pressure Up to 30 bar
Connection 1“ BSP
Measuring system Oval/acetal-resin gears
Body Aluminium measuring chamber
Filter Integrated inlet filter
Display 5-digit partial + 8-digit non-resettable total
Battery 2 × 1.5 V
Battery life Approximately 18–36 months
Protection IP65 on the documented K600/3 specification
Weight Approx. 1.6 kg
The current PIUSI product page confirms 100 L/min maximum flow, ±0.5% accuracy and 0.2% repeatability.
PIUSI has several K600 variants. The K600/3 oil, K600 B/3, and K600/4 have different flow ranges, connections and pressure ratings.
