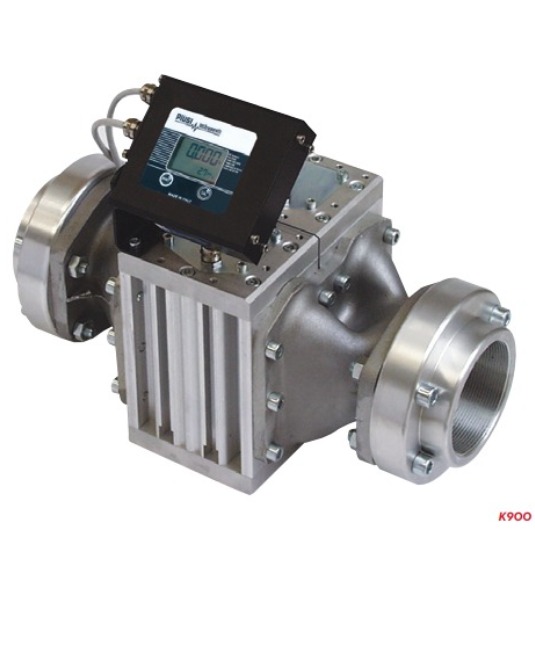

K900 PIUSI METER
Key Features:
High Flow Capacity: Measures fuel flow from 50 to 500 litres per minute.
Excellent Accuracy: Provides ±0.5% measurement accuracy.
Advanced Oval Gear Technology: Ensures precise and consistent fuel measurement.
Digital LCD Display: Clear and easy-to-read measurement information.
Dual Totalizer Function: Displays individual dispensing quantity and cumulative fuel consumption.
Heavy-Duty Aluminium Construction: Designed for demanding industrial applications.
Built-in Filter Protection: Helps prevent contaminants from entering the measuring chamber.
High Pressure Performance: Supports operating pressure up to 20 bar.
Pulse Output Option: Enables integration with external monitoring and fuel management systems.
Industrial-Grade Design: Suitable for continuous high-volume fuel transfer applications.
Easy Installation: 3-inch inlet and outlet connections.
Italian Engineering: Reliable performance and quality from PIUSI, Italy.
Technical specifications:
Parameter
Specification
Measuring technology
Oval gear
Flow rate
50–500 LPM
Flow rate (GPM)
13.2–132 GPM
Accuracy
±0.5%
Repeatability
0.2%
Maximum operating pressure
20 bar (290 PSI)
Burst pressure
40 bar (580 PSI)
Inlet / Outlet
3-inch BSP
Optional connection
NPT version
Maximum fluid temperature
60°C
Measuring chamber
Aluminium
Gear material
Acetal resin
Filter
Built-in suction filter
Filter rating
400 micron
Display
Digital LCD
Weight
Approximately 12–12.5 kg
Display and measurement features:
5-digit partial total: Measures individual fuel dispensing quantities.
8-digit non-resettable total: Records cumulative fuel consumption.
Resettable total: Allows resetting the accumulated measurement.
Flow-rate indication: Displays the instantaneous fuel flow rate.
Floating decimal point: Partial measurement range from 0.001 to 999.99.
Main features and advantages:
Oval gear technology
Provides accurate volumetric measurement with good repeatability.
Heavy-duty aluminium body
Robust construction for demanding industrial applications.
Built-in suction filter
Helps protect the measuring mechanism from contaminants.
Pulse output option
Available version supports external monitoring and integration with fuel management systems.
Important installation considerations:
Install the meter in the correct flow direction.
Ensure the fuel is clean and compatible with the meter materials.
Use suitable pipework and 3-inch connections.
Avoid exceeding the maximum operating pressure of 20 bar.
Check the meter calibration during commissioning.
Select the pulse-output model if external electronic monitoring is required.
