SRI SAKTHI AUTOMATION PRIVATE LIMITED

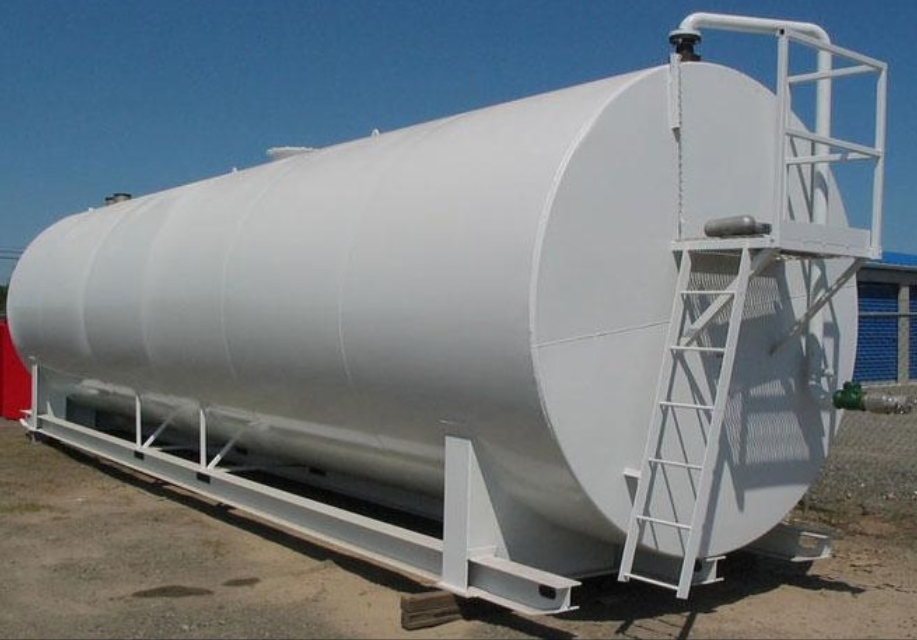

30KL DIESEL STORAGE TANK
Reliable • Durable • Safe Fuel Storage
Key Features & Benefits:
30, 000 Litres Capacity – Ideal for bulk diesel storage.
Heavy-Duty MS Construction – Designed for industrial applications.
Robust Welded Structure – Built for strength and long service life.
Corrosion-Resistant Painting – Enhanced protection against rust and weathering.
Leak-Tested Construction – Quality checks to support safe fuel storage.
Efficient Fuel Filling & Discharge – Convenient inlet and outlet connections.
Level Monitoring System – Easy monitoring of diesel quantity.
Safety Vent & Overfill Protection – Designed for safer tank operation.
Easy Maintenance Access – Inspection manhole and service provisions.
Customizable Design – Dimensions, fittings and accessories as per project requirements.
Industrial-Grade Finish – Suitable for factories, infrastructure and commercial facilities.
Preliminary technical specification:
Parameter
Suggested specification
Nominal capacity
30, 000 litres (30 KL)
Service
Diesel storage
Tank material
Weldable carbon steel / MS
Tank type
Atmospheric storage tank
Configuration
Horizontal cylindrical, above ground
Design pressure
Atmospheric, with designed venting
Shell thickness
To be calculated as per applicable code and design
Internal coating
Optional; only if compatible with diesel and approved for the application
External protection
Anti-corrosion primer and industrial-grade topcoat
Supports
Engineered saddles or structural supports
Filling connection
Fill pipe with suitable connection and cap
Outlet
Diesel withdrawal connection with isolation valve
Venting
Properly sized atmospheric vent; additional protection as required
Level indication
Mechanical level gauge or level transmitter
Overfill protection
High-level alarm and/or automatic overfill prevention
Inspection access
Manhole or inspection opening
Drain
Low-point drain with secure isolation
Earthing
Bonding and earthing provisions
Testing
Weld inspection and leak testing as required by the design code
Recommended safety features:
High-level alarm and overfill prevention.
Properly sized normal vent and emergency venting where required.
Secure fill and discharge connections with isolation valves.
Bund or containment arrangement for diesel spills.
Earthing and bonding, suitable electrical equipment, and fire protection.
Clearly marked tank capacity and diesel identification.
Leak testing, weld inspection and approved installation procedures.
