SRI SAKTHI AUTOMATION PRIVATE LIMITED

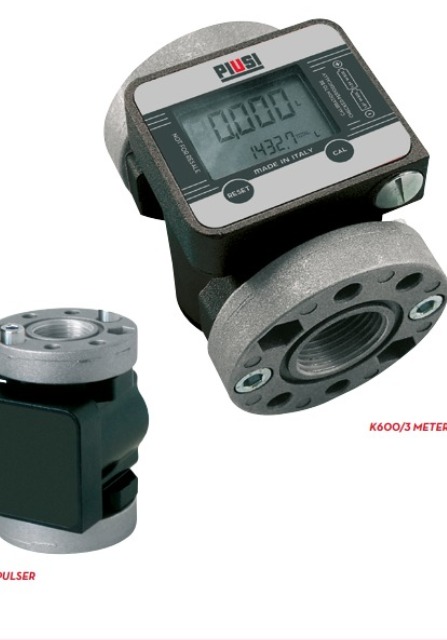

PIUSI K600 DIGITAL FLOW METER
High Accuracy | Reliable Performance | Easy Operation
Key Features:
High-accuracy electronic oval gear measuring technology
Digital display for clear and easy reading
Flow rate measurement up to 100 L/min (model dependent)
High repeatability for consistent measurement
Durable aluminium measuring chamber
Compact and robust industrial design
Integrated filter to protect the measuring mechanism
Resettable batch total and accumulated total display
Suitable for fuel transfer and dispensing applications
Pulse output option available on selected models
Easy installation and user-friendly operation
Designed for reliable performance in demanding working environments
Technical Specifications:
Brand: PIUSI
Model: K600/3
Measuring Principle: Electronic oval gear
Flow Rate: 10–100 L/min (diesel version)
Accuracy: ±0.5%
Repeatability: 0.2%
Maximum Operating Pressure: 30 bar (diesel version)
Measuring Chamber: Aluminium
Display: Digital electronic display
Connection Size: 1-inch BSP (standard diesel version)
Maximum Fluid Temperature: Approximately 60°C, model dependent
Applications: Diesel dispensing, fuel transfer, industrial equipment and machinery
