SRI SAKTHI AUTOMATION PRIVATE LIMITED

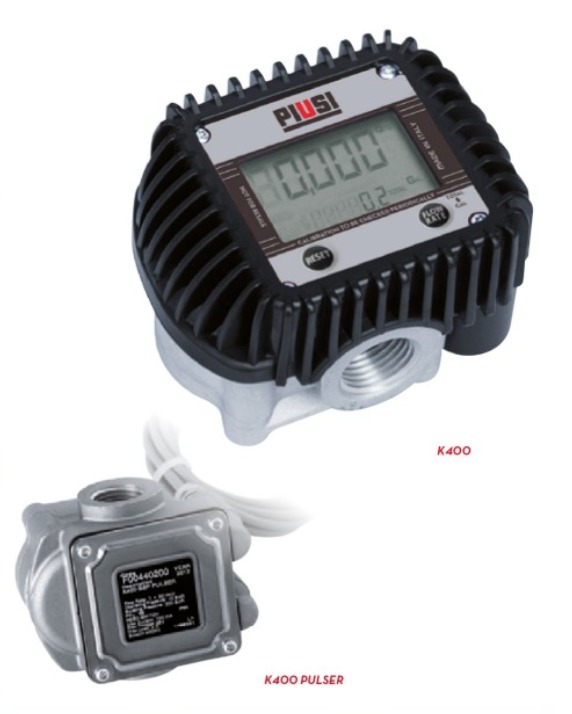

K400 PIUSI METER
Specification:
Parameter
Specification
Model
PIUSI K400
Metering technology
Oval gear
Flow rate
1–30 L/min
Accuracy
±0.5%
Repeatability
0.2% (manufacturer's product page)
Maximum working pressure
70 bar (approx. 1, 015 psi)
Burst pressure
200 bar
Fluid viscosity
2–2, 000 cSt
Meter body
Aluminium
Measuring gears
Acetal resin
Inlet connection
1/2-inch BSP or NPT, depending on version
Outlet connection
1/2-inch BSP or NPT, depending on version
Display
5-digit resettable partial reading and 7-digit total
Power supply
2 × 1.5 V batteries
Pressure loss
Less than 0.5 bar
Protection
Rubber protective cover
Main features:
Digital measurement display
Displays the quantity dispensed, with a resettable partial counter and a cumulative totalizer.
High measurement accuracy
The oval-gear mechanism provides ±0.5% stated accuracy and 0.2% repeatability, helping monitor oil consumption and dispensing quantities.
High-pressure operation
Designed for working pressures up to 70 bar, making it suitable for many industrial lubrication systems.
Electronic pulser option
The K400 Pulser version supplies flow pulses for integration with compatible monitoring and fluid-management systems.
Fluid compatibility: Suitable for diesel fuel dispensing and measurement.
Flow rate: 1–30 litres per minute (LPM).
Accuracy: ±0.5% after calibration.
Repeatability: 0.2%.
Measuring system: Oval-gear technology.
Connection size: ½-inch BSP or NPT, depending on model.
Maximum working pressure: 70 bar.
Display: Digital display with resettable partial quantity and cumulative total.
Power supply: Two replaceable 1.5 V batteries.
Installation: Can be fitted in-line with a diesel hose or on a compatible dispensing nozzle.
Construction: Aluminium measuring chamber with acetal-resin oval gears and rubber protection.
Operating temperature: Up to approximately 60°C, depending on the version.
