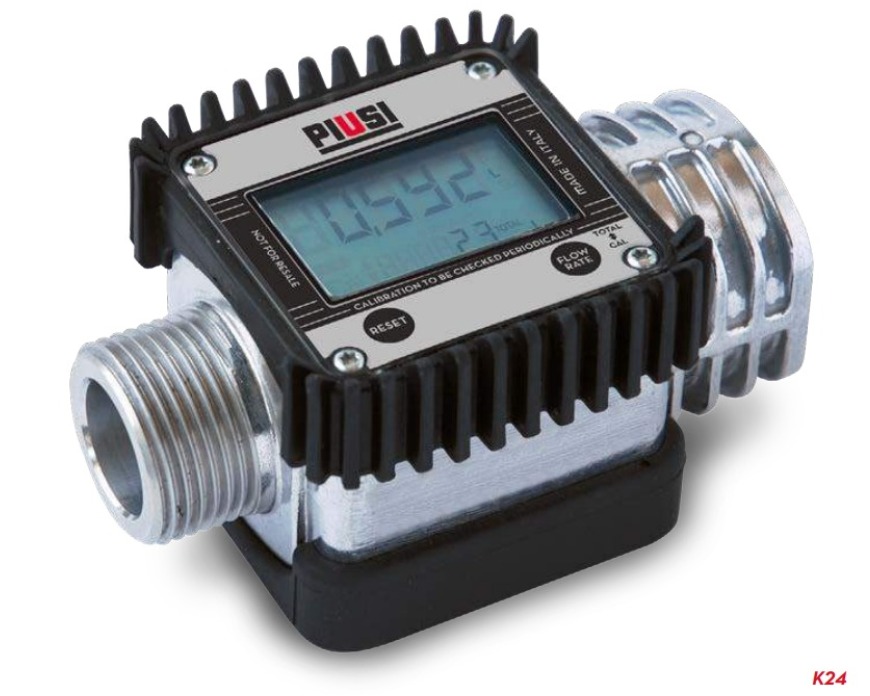

PIUSI K24 METER
Specifications:
Parameter
Specification
Meter type
Electronic oval-gear flow meter
Flow rate
1–30 L/min
Accuracy
±0.5%
Repeatability
0.2%
Maximum working pressure
70 bar
Burst pressure
200 bar
Viscosity range
2–2, 000 cSt
Measuring body
Aluminium
Gear material
Acetal resin
Protective cover
Rubber protector
Display
5-digit resettable partial quantity; 7-digit total
Power supply
2 × 1.5 V batteries
Inlet connection
½-inch BSP, standard version
Outlet connection
½-inch BSP, standard in-line meter
Pressure loss
Less than 0.5 bar
Calibration
Field calibration available
Available versions
Electronic display meter and pulser version
Features:
Digital display and dual totalization
Displays the quantity dispensed for each operation and maintains a cumulative total. The partial quantity can be reset for the next dispensing operation.
High measurement accuracy
Specified accuracy of ±0.5% and repeatability of 0.2%, suitable for controlled oil dispensing in workshops and industrial facilities.
High-pressure operation
Aluminium construction supports operation up to 70 bar working pressure, with a published burst pressure of 200 bar.
Electronic pulser option
A separate pulser version is available for sending flow measurement pulses to a compatible external monitoring or control system.
Available models
Model / product code
Description
F00484000
K400 electronic meter, ½-inch BSP
F00440200
K400 pulser, ½-inch BSP
F00484010
US-market K400 meter, ½-inch NPT
